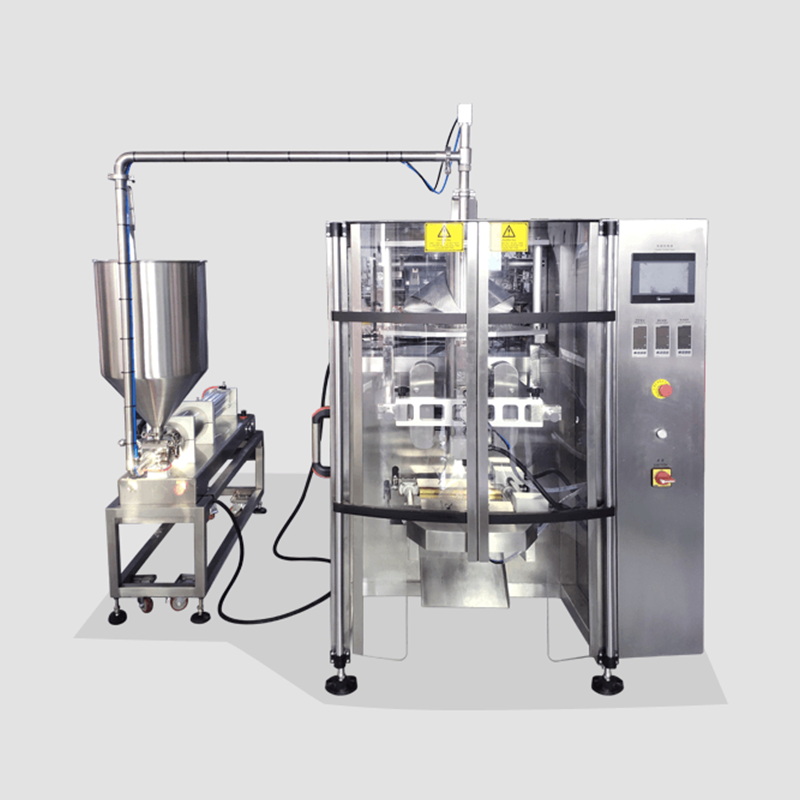

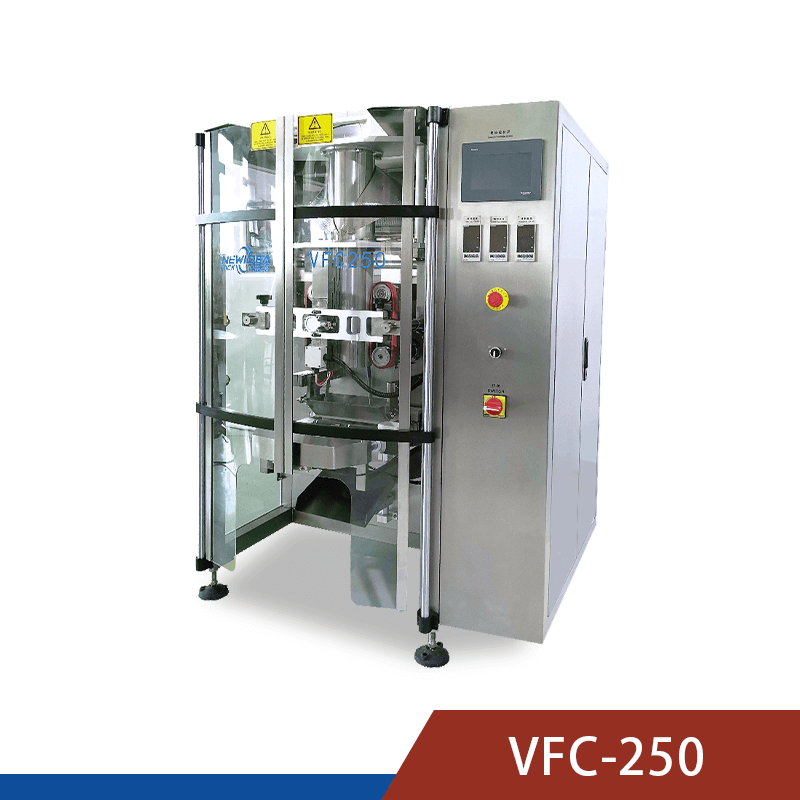

Vertical Form Fill Seal Packaging Machine (VFFS)

ND-VFC250PA

Automatic Vertical Paste Packaging Machine, professional paste packaging solutions have to be highly accurate in weighing and portioning suitable for food, cosmetic, medicine packing such as: ketchup, chocolate sauce, mayonnaise, olive oil, chili sauce, honey, drinks, medicine, shampoo, cream, lotion etc. while maintaining a steady operation speed.

Packing Speed: 70bags/min
Filling Range: 3000ml(max)
bag size: L: 80-340mm, W: 80-250mm
ND-C80E Interactive Features Module

Feature Of Vertical Form Fill Seal Packaging Machine

  • 1 English touchable user interface, easy to operate and use.
  • 2 PLC controlling system on machine, which make machine work stably. No need to stop the machine to adjust parameters.
  • 3 Bag making, sealing, packing and code printing can be done automatically.
  • 4 Transverse and longitudinal sealing independent temperature control, can be good for a variety of compound film, PE film packaging materials.
  • 5 Servo motor vacuum membrane, positioned more accurately.
  • 6 Machine passed ISO, CE, SGS certificate.
  • 7 For paste and sauce products, adopt paste cylinder pump, with high accuracy and capacity.

Automatic Vertical Paste Packaging Machine with high precision and speed within your productions filling, sealing, weighting. Tianjin newidea packaging solutions that are CE, ISO, SGS Certified to meet global standards and sanitary for packaging environment.

Technical Parameters Of Vertical Form Fill Seal Packaging Machine

Parameter Specification
Packing Speed 5-70 bags/min
Filling Range 3000ml(max)
bag size: L: 80-340mm, W: 80-250mm
Max width of roll film 520mm
Air consumption 0.3m³/min
Air Pressure 0.65mpa
Total Power 220V/380V,4kw,50Hz
Weight 600Kgs
Dimensions 1570*1255*1600mm (L*W*H)

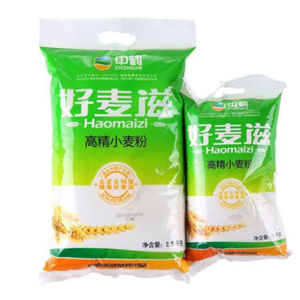

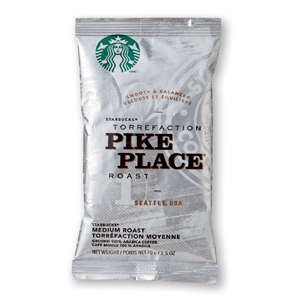

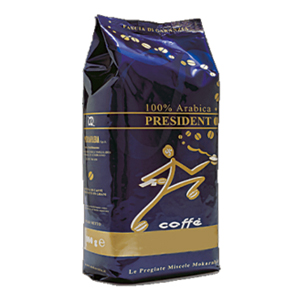

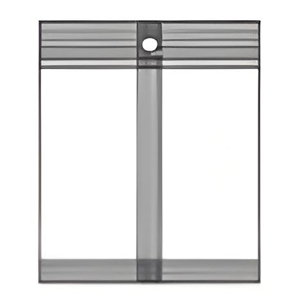

Bag Type Of Vertical Form Fill Seal Packaging Machine

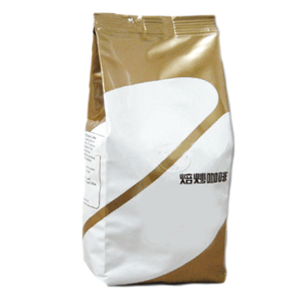

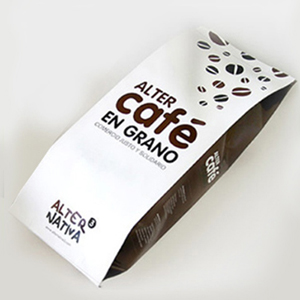

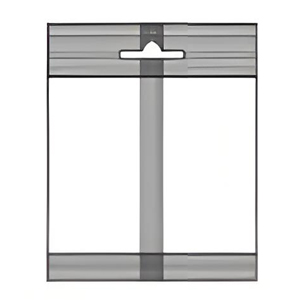

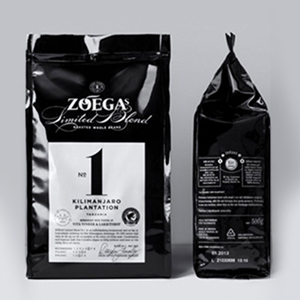

    Bag type: Pillow bag, gusseted bag, corner creased bag, flat bottom bag, one way exhaust valve can be added.

    Packaging Materials: Aluminized film, paper-plastic composite film and other laminated film.

Applications Of Vertical Form Fill Seal Packaging Machine

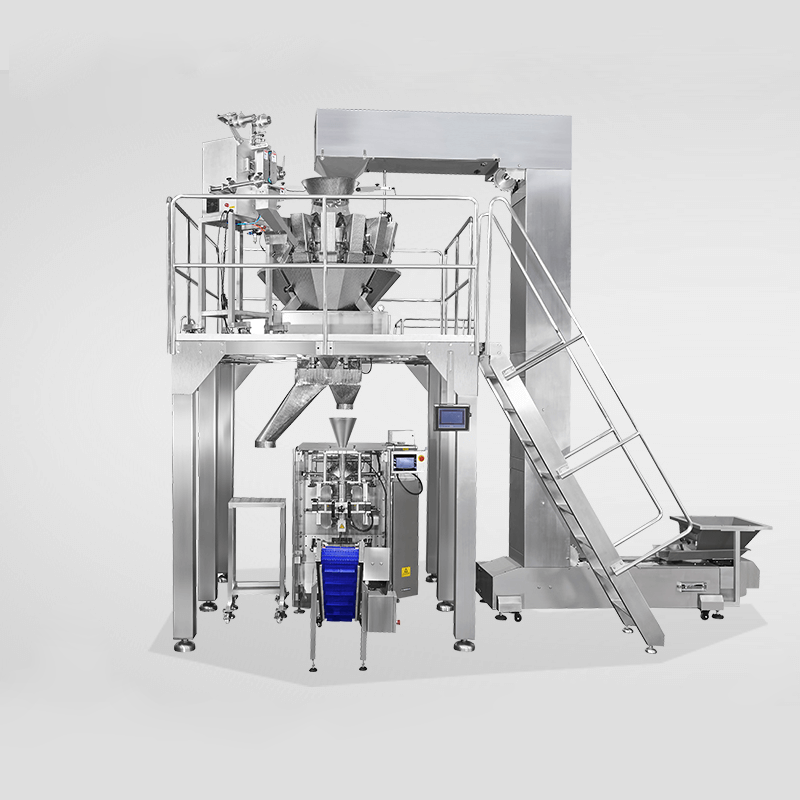

Granules: Snacks, cereals, frozen products, pet food, veterinary medicine, chemicals, hardware etc.

Powder: Milk powder, flour, grain powder, starch, seasoning powder, protein powder, vegetable powder, fruit powder, coffee powder, medicine powder, etc.

Paste and liquid: Tomato sauce, fruit jam, honey, salad dressing, putty paste oil, fruit juice,etc.

Machine Operation Demonstration

FAQ Of Vertical Form Fill Seal Packaging Machine

How to solve the film deviation?
1、The position of the roll film can be quickly corrected by the correction device on the touch screen.
2、Check whether the position of the center line of the film roll on the air shaft is in a straight line with the center line of the former.
3、More solution you can contact us for assistant.

How to solve the bag sealing?
1、Properly extend the horizontal sealing delay in the parameter setting.
2、Properly increase the temperature of the corresponding temperature control table.
3、Check whether the material is clamped, and adjust the blanking time through the parameter setting.

Media Of Vertical Form Fill Seal Packaging Machine

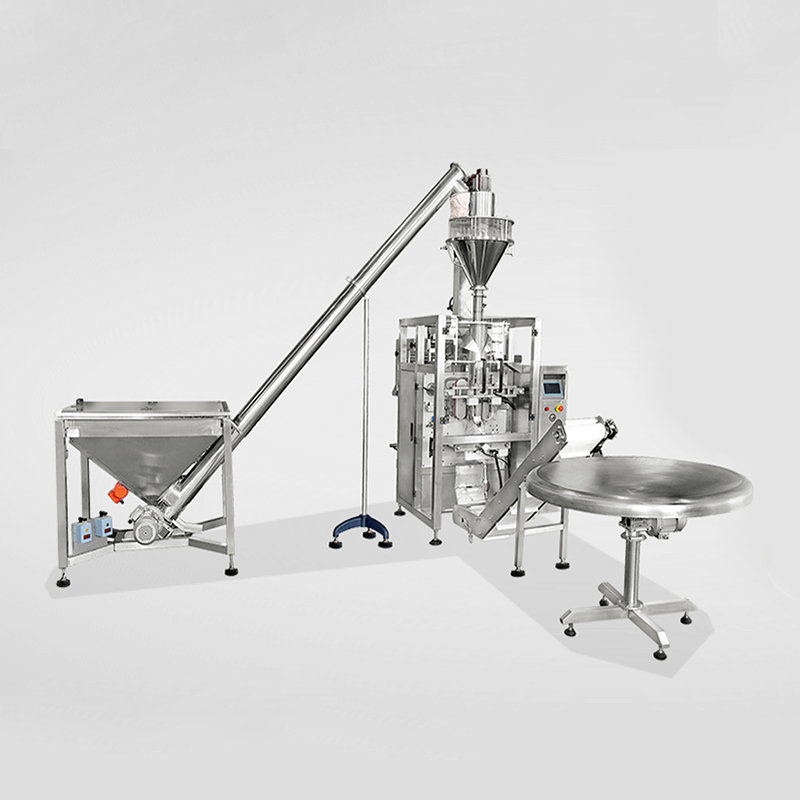

Vertical Form Fill Seal Packaging Machine

With independent temperature controllers for vertical and horizontal sealing respectively, this machine can accept various kinds of heat sealable laminated packaging film, such as PE/PET, PE/VMPET/PET, PE/PAPER, BOPP, LDPE, etc. PE film is also applicable with PE impulse sealing system.ning suitable for food, cosmetic, medicine packing such as: ketchup, chocolate sauce, mayonnaise, olive oil, chili sauce, honey, drinks, medicine, shampoo, cream, lotion etc. while maintaining a steady operation speed.

ND-VFC250pa...
